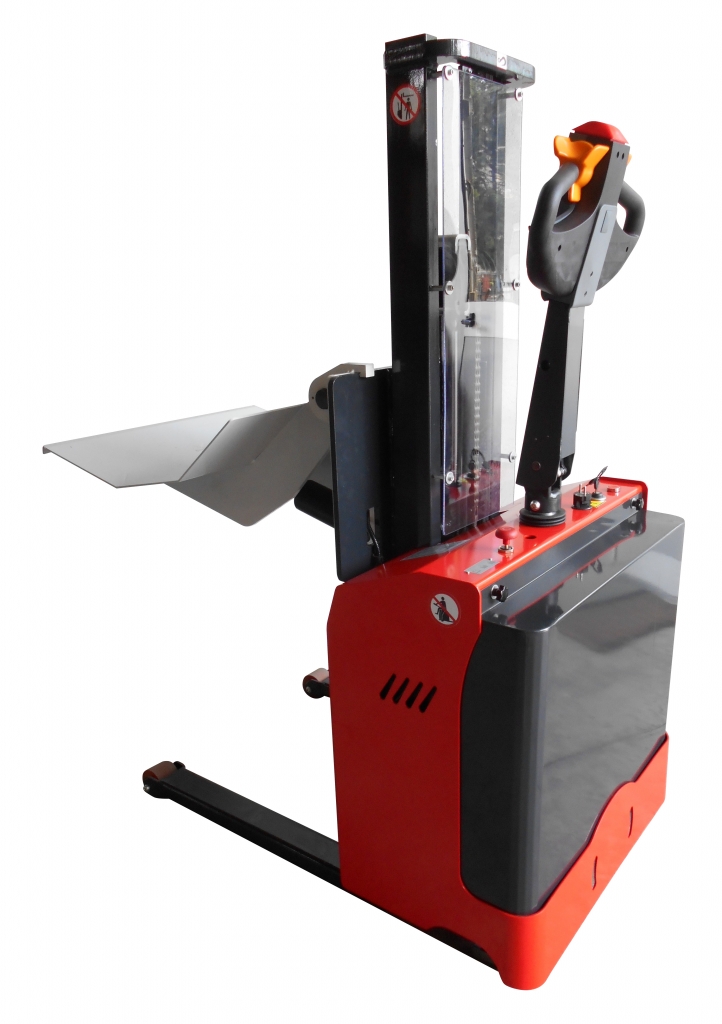

Electric pedestrian stacker equipped of reels cradle with hydraulic tilting
Electric pedestrian stacker equipped of reels cradle with hydraulic tilting. Electric controls on the tiller head. Safety push button to activate the forward tilting (two hands control) and microswitch that enables lifting only with cradle tilted backward. 24V/100Ah battery and built in charger. Hydraulic sideshifting on demand.
→
| Data Sheet | CB 08 - CBB | |
| Capacity | kg | 800 |
| Load centre | mm | 550 |
| Weight | kg | 400 |
| Wheels | PU/PU | |
| Traction motor | kW | MP 0,7 |
| Lifting motor | kW | DC 2,0 |
| Battery | V/Ah | 24/100 |
| Battery weight | kg | 50 |
| Charger | V/A | HF 24/10 |
