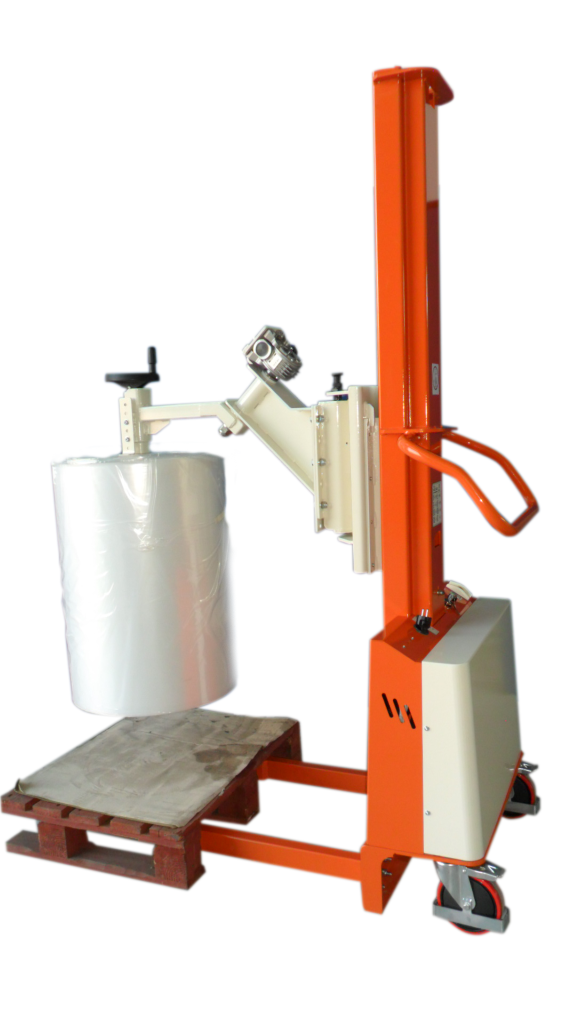

Semi-electric Lifter with reels spindle manual control
Lifter with manual traction and 24V electro-hydraulic lifting equipped of mechanical spindle to take the reel from the core and rotate it from vertical to horizontal and opposite.
→
| Data Sheet | ABL-ARB | ABL-MRB | |
| Capacity | kg | 160 | 200 |
| Load centre | mm | 300 | 300 |
| Weight | kg | 210 | 250 |
| Wheels | PU/PU | PU/PU | |
| Traction motor | kW | ------ | ------ |
| Lifting motor | kW | 0,5 | 0,8 |
| Battery | V/Ah | 2X12/44 | 2x12/56 |
| Battery weight | kg | 26 | 38 |
| Charger | V/A | HF 10A | HF 10A |
